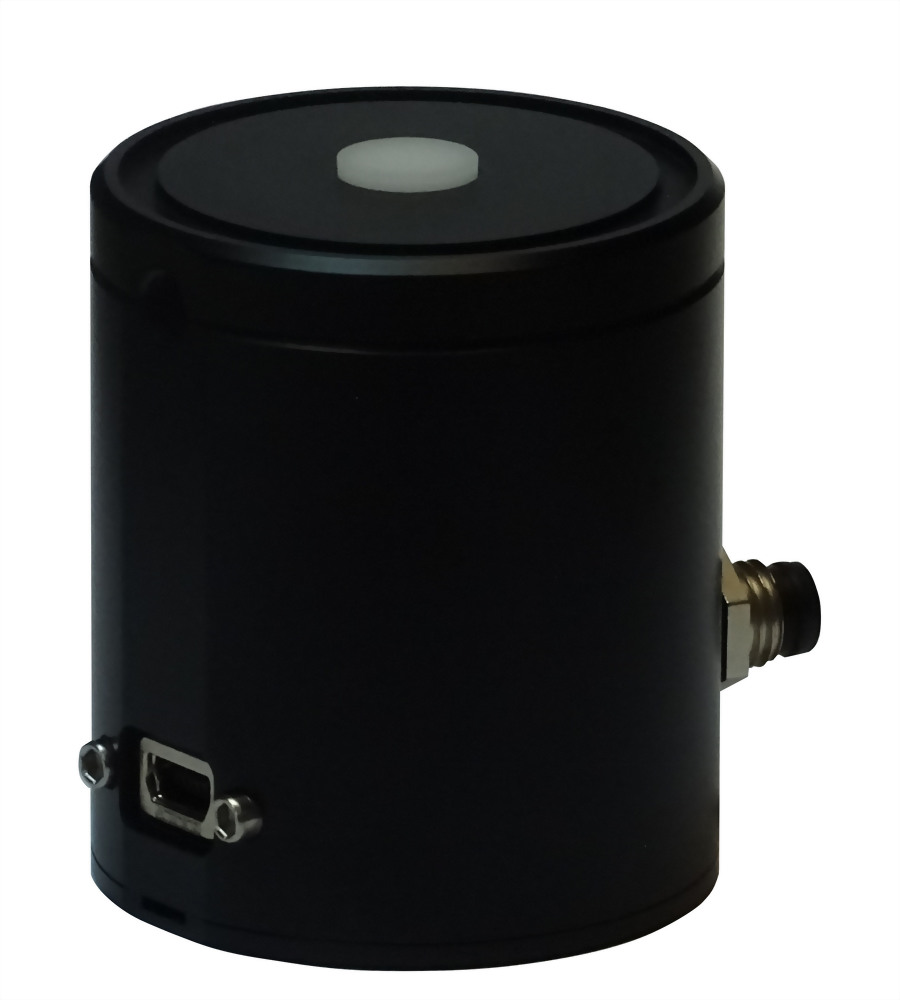

光譜式照度感測器
- 適用於評估光源、照明照度測量
- 感測器適用於USB 2.0 , RS485 使用介面
- 植物照明 - PAR測量光合光子通量密度(PPFD),單位為μmol/m²s
- 人因照明 - EML (Equivalent Melanopic Lux)
- 光療照度 - 膽紅素的總輻照度, Ebi , 單位為mW/cm2(IEC 60601-2-50),
- 平均光譜輻照度單位為μW/cm2/nm
簡介 |
可遠端使用之光感測器, 用於光輻射量測和光譜測量 |
量測範圍 |
照度 1 to 350,000 lx (for white LED), 360 nm to 830 nm. |
收光孔徑 |
擴散片直徑10mm,餘弦校正視場 f2≤1.5% |
量測參數 |
Illuminance photopic Illuminance scotopic Spectral Irradiance |
Color coordinates (x,y) CCT CRI (color rendering index) |
|
PAR– PPFD |
|
Melanopic irradiance |
|
Melanopic illuminance (equivalent melanopic lux) |
|
Melanopic daylight equivalent illuminance |
|
Total irradiance for bilirubin (Ebi) |
|
Average spectral irradiance for bilirubin (AAP) |
|
CSS-45 |
光感測頭用於照度及光色度量測 |
(Class B according DIN 5032-7 or AA according to JIS C 1609-1:2006) |
|
光譜量測範圍 |
(360 - 830) nm |
波長精度 |
10 nm 根據CIE 214應用的光學頻寬校正 |
量測範圍 typ. white LED |
(1 - 350,000) lx |
Δx, Δy 再現性 |
± 0.0002 |
Δx, Δy 不確定度 |
± 0.002 (Standard illuminant A) |
色溫量測範圍 |
(1700 - 17000) K |
ΔCCT |
± 50 K (standard illuminant type A) ± 4 % (depending on the LED spectrum) |
介面 |
USB 2.0, RS 485 |
電源 |
5 VDC by USB |
