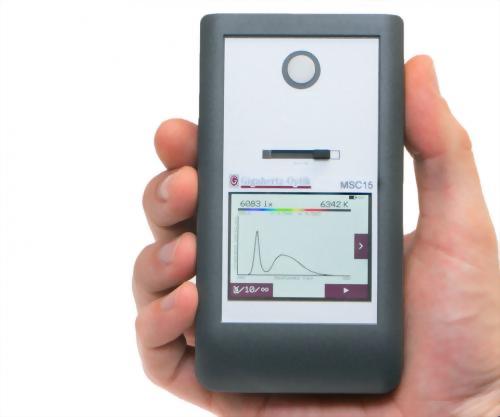

手持式光譜照度計
- 適用於評估光源、照明的照度測量
- 褪黑激素 melanopic ( ref: CIE TN 003:2015 )
- 膽紅素濃度 Bilirubin ( ref: IEC 60601-2-50 )
- 植物燈光量子通量密度PPFD (umol/m2/sec )
- 符合Class B according DIN 5032-7 or AA according to JIS C 1609-1:2006
- 光譜量測範圍 380-830 nm
- 輕巧且方便的設計，適合攜帶使用
|
MSC15 |
手持式使用, 用於照度和色度測試.彩色觸控屏幕. |
|
|
量測參數 |
Illuminance photopic Illuminance scotopic Spectral Irradiance |
|
|
Color coordinates (x,y) CCT CRI (color rendering index) |
||
|
TM-30 Rf and Rg |
||
|
PAR– PPFD |
||
|
Melanopic irradiance |
||
|
Melanopic illuminance (equivalent melanopic lux) |
||
|
Melanopic daylight equivalent illuminance |
||
|
Total irradiance for bilirubin (Ebi) |
||
|
Average spectral irradiance for bilirubin (AAP) |
||
|
光譜量測範圍 |
(360 - 830) nm |
|
|
波長精度 |
10 nm 根據CIE 214應用的光學頻寬校正 |
|
|
量測範圍 typ. white LED |
(1 - 350000) lx |
|
|
Δx, Δy 再現性 |
± 0.0002 |
|
|
Δx, Δy 不確定度 |
± 0.002 (Standard illuminant A) |
|
|
色溫量測範圍 |
(1700 - 17000) K |
|
|
ΔCCT |
± 50K (standard illuminant type A) |
|
|
± 4% (depending on the LED spectrum) |
||
|
介面 |
USB 2.0 |
|
|
電源 |
充電電池最少可運行8小時 |
|
|
顯示方式 |
彩色觸控屏幕 |
