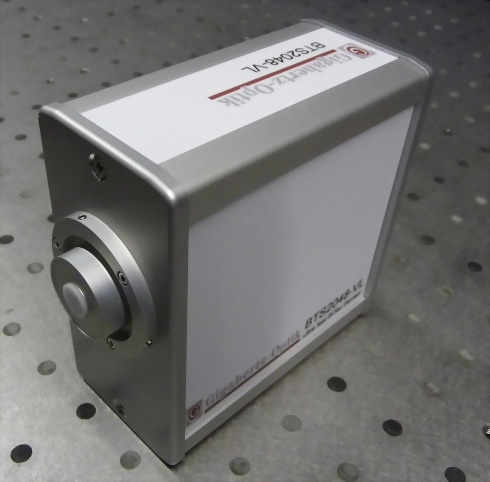

光譜儀、光譜式照度計
- 高質量光輻射照度測量、光譜和色度測量
- 光譜量測範圍280nm-1,050 nm
- 提供TE-Cooling裝置, 避免熱雜訊問題
- 支援USB2.0, Ethernet, RS232, RS485介面
Spectral Detector |
|
積分時間 |
2 μs - 4 s *1 |
光譜量測範圍 |
(280 -1050) nm |
波長精度 |
2 nm |
像素解析度 |
~0.4 nm/Pixel |
像素數量 |
2048 |
感光元件 |
高靈敏度背薄CCD芯片 |
ADC |
16bit (25 ns instruction cycle time) |
波長峰值精度 |
±0.2 nm |
主波長精度 |
±0.5 nm *2 |
不確定度 Δx und Δy |
±0.0015 (Standard illuminant A) ±0.0020 (common LED) |
±0.0001 |
|
ΔCCT |
Standard illuminant A 30K; LED up to ± 1.5% depending of the LED spectrum |
雜散光 |
2E-4 *3 |
Integral Detector |
|
量測時間 |
20 µs - 6000 ms |
