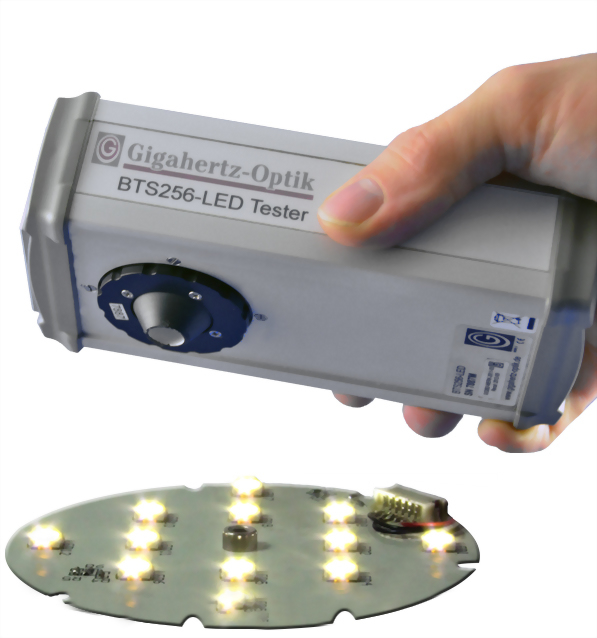

光源多功能分析儀
- 含直徑5cm積分球, 適用光源直徑14mm內的流明測試
- 內建光譜儀, 提供光譜、色度、色溫等訊息
- 儀器可另搭配其它較大尺寸積分球
- USB供電即可測試
- 光譜量測範圍 380-830 nm
Spectral Detector |
|
感光元件 |
CMOS diode array |
光譜量測範圍 |
(360 - 830) nm |
波長精度 |
5 nm |
數據解析度 |
1 nm |
積分時間 |
(5.2 - 30000) ms |
波長峰值精度 |
± 0.5 nm |
主波長精度 |
± 1 nm |
Δx, Δy 再現性 |
± 0.0001 (Standard illuminant type A) ± 0.0002 (LED) |
Δx, Δy 不確定度 |
± 0.002 (Standard illuminant type A) ± 0.005 (typ. LED) |
色溫量測範圍 |
(1700 - 17000) K |
ΔCCT |
± 50K (standard illuminant type A) ± 3% (depending on the LED spectrum) |
雜散光 |
6E-4 (Blue LED) ; 6E-4 (Green LED) ; 6E-4 (Red LED) |
1E-3 (White LED) | |
Integral Detector |
|
最大光通量 |
70000 lm |
Noise equivalent luminous flux |
0.05 m lm |
Resolution |
12Bit |
量測時間 |
(0.1 - 6000) ms |
